Key Features：
1）Long cycle life: More than 2000 times (charging and discharging at 1C,remain capacity more than 80%)
2) Flexible design: capacity range from 10Ah to 200Ah.
2) Flexible design: capacity range from 10Ah to 200Ah.
3）Safety: No fire and explosion in overcharge test at voltage up to 30V in short-circuit test, Acupuncture test and heat shock up to 130℃
4）Excellent high temperature performance: operate in 85℃ could working well
5) Lntelligent BMS Battery Management system.
6) Environmental friendly.
| Model |
Nominal Voltage |
Nominal Capacity (Ah) |
Internal Resistance (mΩ) |
Life Cycles |
Maximum Charge Voltage |
Cut-off Discharge Voltage |
Continuous Discharge Current |
Battery (Approx.) |
Measurement(T*W*L) |
| FT-16L10 | 48V | 10Ah | ＜50 | ≥2000 | 58.4V | 36.8V | 10A | 6.0Kg |
|
| FT-16L20 | 48V | 20Ah | ＜50 | ≥2000 | 58.4V | 36.8V | 20A | 12.0kg | 318*181*168mm or Customized |
| FT-16L30 | 48V | 30Ah | ＜50 | ≥2000 | 58.4V | 36.8V | 30A | 17.5kg | 295*178*345mm or Customized |
| FT-16L40 | 48V | 40Ah | ＜50 | ≥2000 | 58.4V | 36.8V | 40A | 23.0kg | 295*178*345mm or Customized |
| FT-16L50 | 48V | 50Ah | ＜50 | ≥2000 | 58.4V | 36.8V | 50A | 28.5kg | 482*320*130mm or Customized |
| FT-16L60 | 48V | 60Ah | ＜50 | ≥2000 | 58.4V | 36.8V | 60A | 37.5kg | 375* 305*200mm or Customized |
| FT-16L80 | 48V | 80Ah | ＜50 | ≥2000 | 58.4V | 36.8V | 80A | 45.0kg | 295*178*345mm or Customized |

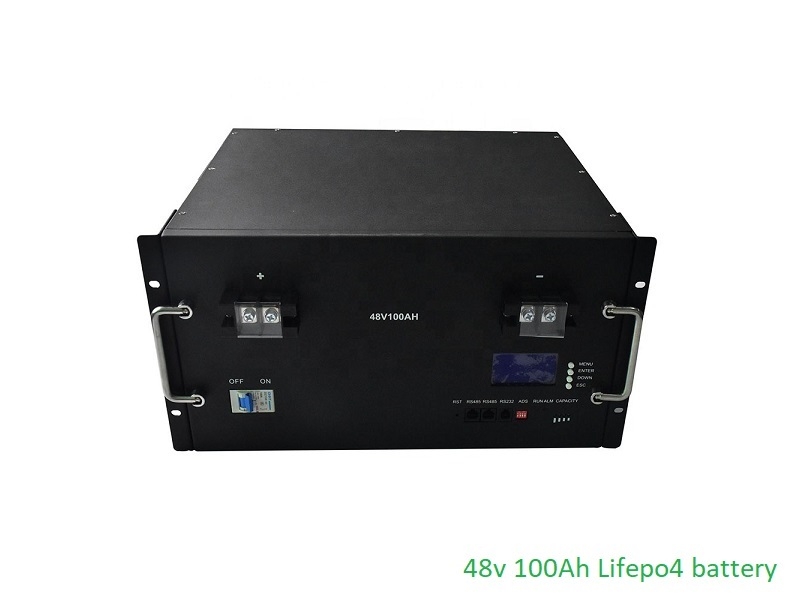

| FT-16L100 | 48V | 100Ah | ＜50 | ≥2000 | 58.4V | 36.8V | 100A | 51.0kg | 430* 430*177mm or Customized |
| FT-16L150 | 48V | 150Ah | ＜50 | ≥2000 | 58.4V | 36.8V | 100A | 90.0kg | . Customized . |
| FT-16L200 | 48V | 200Ah | ＜50 | ≥2000 | 58.4V | 36.8V | 100A | 110.0kg | . Customized . |
| Custom model | 48V | / | / | ≥2000 | 58.4V | 36.8V | / | / | . Customized . |
